STPSC606D - ST Microelectronics

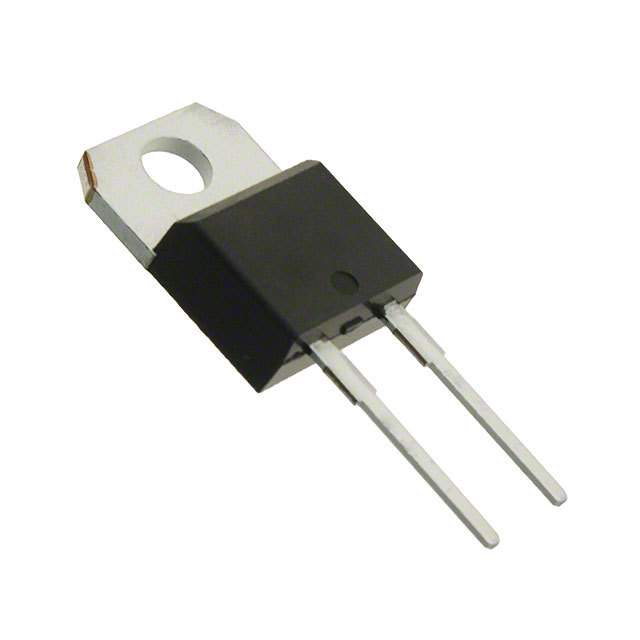

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STPSC606D
Manufacturer

ST Microelectronics
ChipWorker Part#

CW6290603
Category

TVS Diode
Package

TO-220-2
Description

STMICROELECTRONICS STPSC606D Silicon Carbide Schottky Diode, SIC, 600V Series, Single, 600V, 6A, 6NC, TO-220AC
Documentation

Datasheet

STPSC606D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STPSC606D Specifications

Attribute	Attribute Value

Part Number	STPSC606D
Manufacturer	ST Microelectronics
ChipWorker Part#	CW6290603
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Forward Voltage	1.7 V
Thermal Resistance	2.8 ℃/W
Reverse recovery time	0 ns
Forward Current	6 A
Max Forward Surge Current (Ifsm)	27 A
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	6000 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature (Max)	175 ℃
	expand all
Operating Temperature	-40℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The SiC diode is an ultrahigh performance power Schottky diode. It is manufactured using a silicon carbide substrate. The wide bandgap material allows the design of a Schottky diode structure with a 600 V rating. Due to the Schottky construction no recovery is shown at turn-off and ringing patterns are negligible. The minimal capacitive turn-off behavior is independent of temperature.
ST SiC diodes will boost the performance of PFC operations in hard switching conditions.
**Key Features**
No or negligible reverse recovery
Dedicated to PFC boost diode
Switching behavior independent of temperature
