TC4427EPA - Microchip

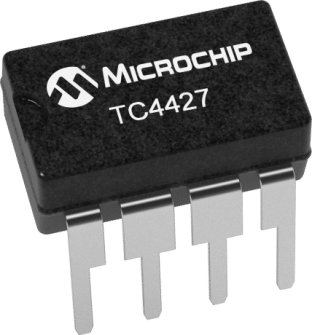

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TC4427EPA
Manufacturer

Microchip
ChipWorker Part#

CW7896996
Category

FET Driver
Package

DIP-8
Description

TC4427EPA, Dual MOSFET Power Driver 1.5A, 4.5 to 18V, Non-Inverting, 8Pin PDIP
Documentation

Datasheet

TC4427EPA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TC4427EPA Specifications

Attribute	Attribute Value

Part Number	TC4427EPA
Manufacturer	Microchip
ChipWorker Part#	CW7896996
Category	FET Driver
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	4.50V (min)
Operating Voltage	4.5V ~ 18V
Rise/Fall Time	19 ns
Number of Outputs	2 Output
Output Voltage	25.0 mV
Output Current	1.50 A
Supply Current	4.50 mA
Number of Positions	8 Position
Power Dissipation	730 mW
Rise Time	40ns (Max)
Fall Time	40ns (Max)
Fall Time (Max)	30 ns
Fall Time (Max)	30 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	730 mW
Supply Voltage	4.5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	10.16 mm
Size-Height	4.06 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

Microchip"s new Power MOSFET Drivers feature wide-range input supply voltages and output currents. These drivers offer outstanding latch-up immunity. The portfolio has recently been expanded with the addition of smaller, surface mount packages.
