TDA5235 - Infineon

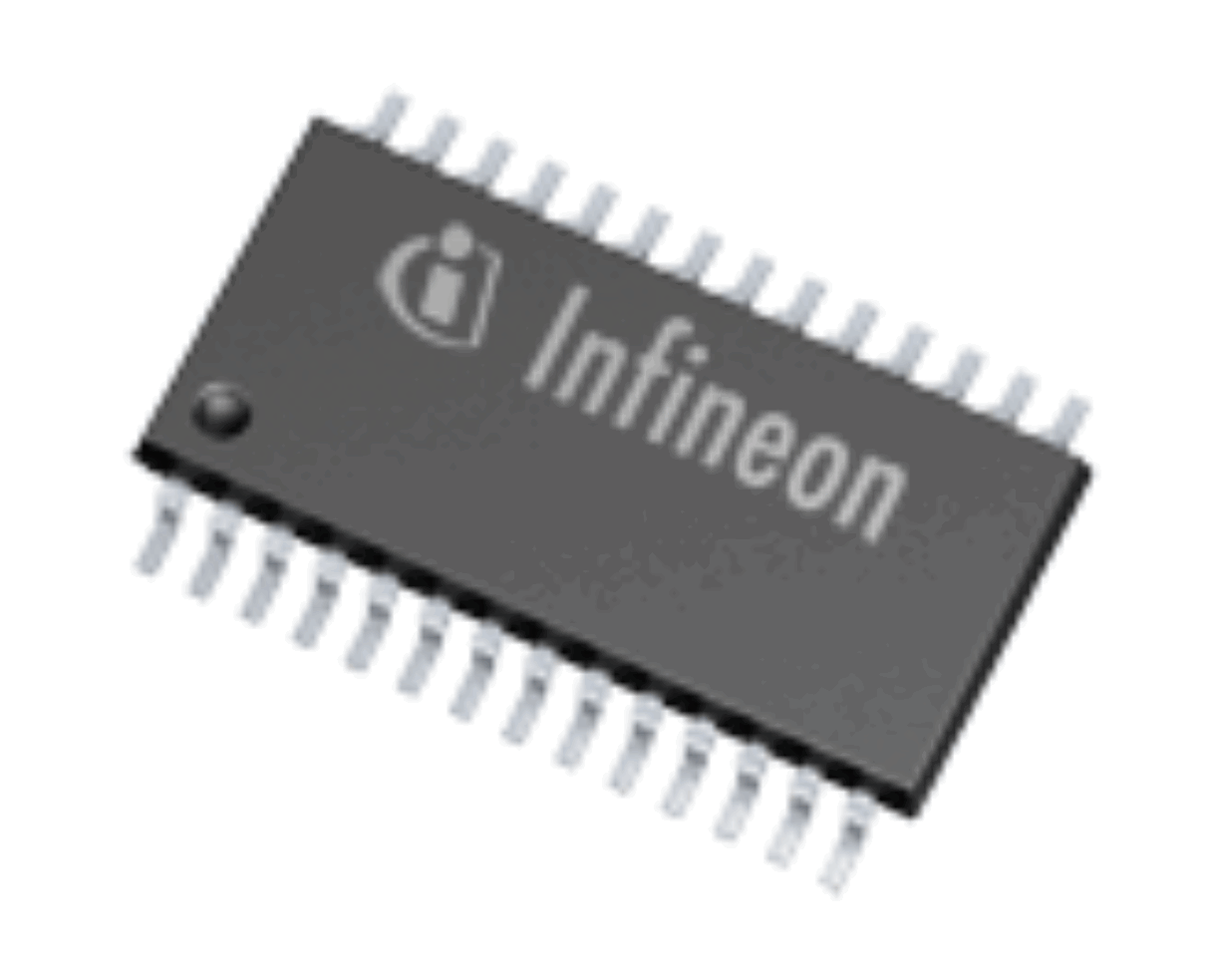

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TDA5235
Manufacturer

Infineon
ChipWorker Part#

CW52975065
Category

RF Receiver
Package

TSSOP-28
Description

RF Receiver ASK/FSK 3.3V/5V Automotive 28Pin TSSOP T/R
Documentation

Datasheet

TDA5235 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TDA5235 Specifications

Attribute	Attribute Value

Part Number	TDA5235
Manufacturer	Infineon
ChipWorker Part#	CW52975065
Category	RF Receiver
Documentation	Datasheet
Number of Pins	28 Pin
Case/Package	TSSOP-28
Frequency	300MHz ~ 320MHz, 425MHz ~ 450MHz, 863MHz ~ 870MHz, 902MHz ~ 928MHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	expand all
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The IC is a low power ASK/FSK Receiver for the frequency bands 300-320, 425-450, 863-870 and 902-928 MHz. Bi-phase modulation schemes, like Manchester, bi-phase mark, bi-phase space and differential Manchester are supported. The chip offers best-in-class sensitivity performance at a very high level of integration and needs only a few external components.
