TEA3718SDP ,Motor Driver - ST Microelectronics

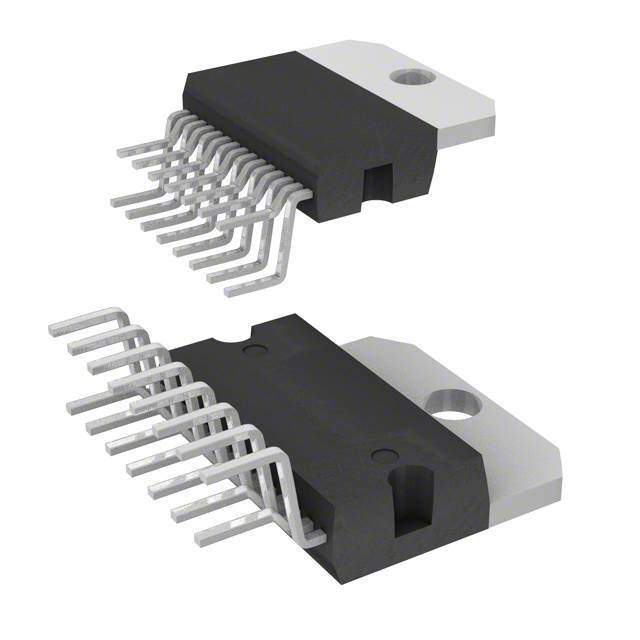

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
49 points
-
Part NoTEA3718SDP
-
ManufacturerST Microelectronics
-
ChipWorker Part#CW120274564
-
CategoryMotor Driver
-
PackageDIP-16
-
DescriptionStepper Motor Controller 16Pin Power PDIP Tube
-
DocumentationDatasheet
-
Ships fromMoscow
-
НаличиеIn Stock
-
Estimated Price$ 1.23
Payment Methods and Delivery
{{ estimate }}
Buy TEA3718SDP
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
TEA3718SDP Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
TEA3718SDP Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | TEA3718SDP | |
| Manufacturer | ST Microelectronics | |
| ChipWorker Part# | CW120274564 | |
| Category | Motor Driver | |
| Documentation | Datasheet | |
| Mounting Style | Through Hole | |
| Number of Pins | 16 Pin | |
| Case/Package | DIP-16 | |
| Supply Voltage (DC) | 48.0 V | |
| Output Current | 1.5 A | |
| Supply Current | 25.0 mA | |
| Power Dissipation | 3600 mW | |
| Operating Temperature (Max) | 70 ℃ | |
| Operating Temperature (Min) | 0 ℃ | |
| Power Dissipation (Max) | 3600 mW | |
| Supply Voltage | 4.75V ~ 5.25V | |
| expand all | ||
| Operating Temperature | 0℃ ~ 150℃ (TJ) | |
| Product Lifecycle Status | Active | |
| Packaging | Tube | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| ECCN Code | EAR99 |
Similar & Replacement Parts
Similar products
Product Description
- DESCRIPTION
- The TEA3718 and TEA3718S are bipolar monolithic integrated circuits intended to control and drive the current in one winding of a bipolar stepper motor. The circuits consist of an LS-TTL compatible logic input, a current sensor, a monostable and an output stage with built-in protection diodes. Two TEA3718 or TEA3718S and a few external components form a complete control and drive unit for LS-TTL or microprocessor-controlled stepper motor systems.
- ■ HALF-STEP AND FULL-STEP MODE
- ■ BIPOLAR DRIVE OF STEPPER MOTOR FOR MAXIMUM MOTOR PERFORMANCE
- ■ BUILT-IN PROTECTION DIODES
- ■ WIDE RANGE OF CURRENT CONTROL 5 TO 1500 mA
- ■ WIDE VOLTAGE RANGE 10 TO 50 V
- ■ DESIGNED FOR UNSTABILIZED MOTOR SUPPLY VOLTAGE
- ■ CURRENT LEVELS CAN BE SELECTED IN STEPS OR VARIED CONTINUOUSLY
- ■ THERMAL OVERLOAD PROTECTION
- ■ ALARM OUTPUT OR PRE-ALARM OUTPUT (see internal table)
