TLE2426CD - TI

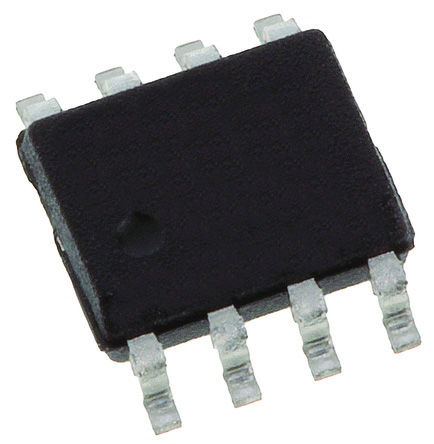

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLE2426CD
Manufacturer

TI
ChipWorker Part#

CW21829836
Category

Voltage Reference
Package

SOIC-8
Description

Voltage Reference Adjustable 2V TO 20V 20mA 8Pin SOIC Tube
Documentation

Datasheet

TLE2426CD Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLE2426CD Specifications

Attribute	Attribute Value

Part Number	TLE2426CD
Manufacturer	TI
ChipWorker Part#	CW21829836
Category	Voltage Reference
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	5.00 V, 4.00 V (min)
Capacitance Tolerance	±1 %
Input Voltage (DC)	40.0V (max)
Output Voltage	2V ~ 20V
Output Current	20 mA
Supply Current	400 µA
Number of Channels	1 Channel
Number of Positions	8 Position
Input Voltage (Max)	40 V
Output Voltage (Max)	20 V
Output Voltage (Min)	2 V
Output Current (Max)	20 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	4V ~ 40V
	expand all
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Temperature Coefficient	±35 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The TLE2426CD is a "Rail Splitter" Precision Virtual Ground Voltage Reference for signal-conditioning applications utilizing a single power source. The precision virtual ground whose output voltage is always equal to one-half the input voltage. The unique combination of a high-performance, micropower operational amplifier and a precision trimmed divider on a single silicon chip results in a precise VO/VI ratio of 0.5 while sinking and sourcing current. It provides a low impedance output with 20mA of sink and source capability while drawing less than 280µA of supply current. With the addition of an external capacitor (CNR), peak-to-peak noise is reduced while line ripple rejection is improved. Initial output tolerance for a single 5 or 12V system is better than 1% with 3.6% over the full 40V input range. Ripple rejection exceeds 12 bits of accuracy.
1/2 VI virtual ground for analogue systems
170µA Typical micropower operation (VI = 5V)
Wide VI range (4 to 40V)
High output-current capability (source - 20mA typical, sink - 20mA typical)
Excellent output regulation
Low impedance output (0.0075R typical)
Green product and no Sb/Br
