TLE2426IP - TI

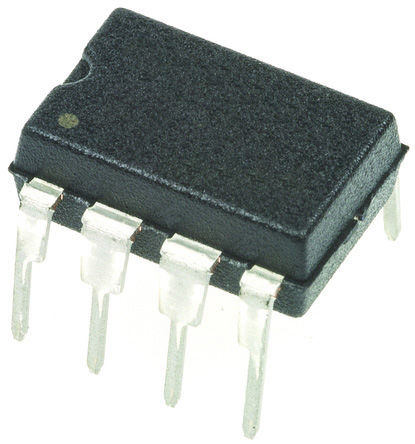

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TLE2426IP
Manufacturer

TI
ChipWorker Part#

CW59048940
Category

Voltage Reference
Package

PDIP-8
Description

V-Ref Adjustable 2V to 20V 20mA 8Pin PDIP Tube
Documentation

Datasheet

TLE2426IP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TLE2426IP Specifications

Attribute	Attribute Value

Part Number	TLE2426IP
Manufacturer	TI
ChipWorker Part#	CW59048940
Category	Voltage Reference
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	40.0V (max)
Capacitance Tolerance	±1 %
Input Voltage (DC)	40.0V (max)
Output Voltage	2V ~ 20V
Output Current	20 mA
Supply Current	400 µA
Number of Channels	1 Channel
Input Voltage (Max)	40 V
Output Voltage (Max)	20 V
Output Voltage (Min)	2 V
Output Current (Max)	20 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4V ~ 40V
	expand all
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Temperature Coefficient	±35 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

In signal-conditioning applications utilizing a single power source, a reference voltage equal to one-half the supply voltage is required for termination of all analog signal grounds. Texas Instruments presents a precision virtual ground whose output voltage is always equal to one-half the input voltage, the TLE2426 "rail splitter."
The unique combination of a high-performance, micropower operational amplifier and a precision- trimmed divider on a single silicon chip results in a precise VO/VI ratio of 0.5 while sinking and sourcing current. The TLE2426 provides a low- impedance output with 20 mA of sink and source capability while drawing less than 280uA
of supply current over the full input range of 4V to 40V. A designer need not pay the price in terms of board space for a conventional signal ground consisting of resistors, capacitors, operational amplifiers, and voltage references. The performance and precision of the TLE2426 is available in an easy-to-use, space saving, 3-terminal LP package. For increased performance, the optional 8-pin packages provide a noise-reduction pin. With the addition of an external capacitor (CNR), peak-to-peak noise is reduced while line ripple rejection is improved.
Initial output tolerance for a single 5-V or 12-V system is better than 1% with 3.6% over the full 40-V input range. Ripple rejection exceeds 12 bits of accuracy. Whether the application is for a data acquisition front end, analog signal termination, or simply a precision voltage reference, the TLE2426 eliminates a major source of system error.
The C-suffix devices are characterized for operation from 0°C to 70°C. The I suffix devices are characterized for operation from -40°C to 85°C. The M suffix devices are characterized over the full military temperature range of -55°C to 125°C. View datasheet View product folder
