TPD1E05U06QDPYRQ1 - TI

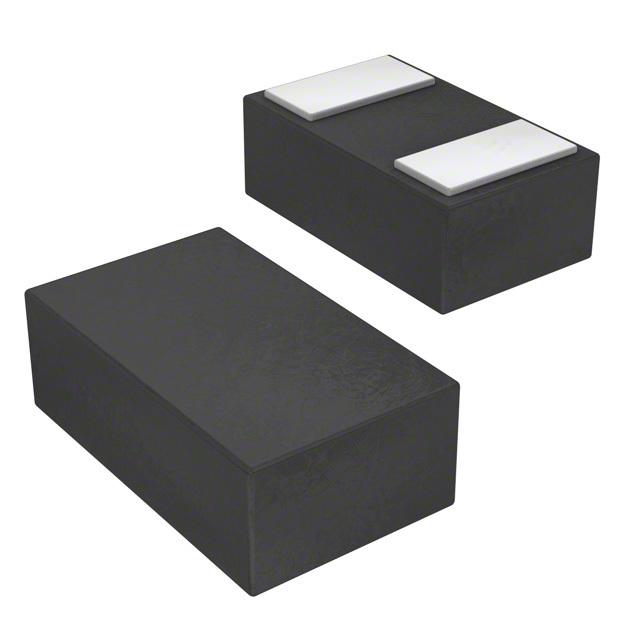

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPD1E05U06QDPYRQ1
Manufacturer

TI
ChipWorker Part#

CW76019993
Category

Diode
Package

X1SON-2
Description

ESD Suppressors / TVS Diodes TPD1E05U06-Q1 Automotive 1Channel Ultra-Low-Capacitance IEC ESD Protection Diode Evaluation Module
Documentation

Datasheet

TPD1E05U06QDPYRQ1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPD1E05U06QDPYRQ1 Specifications

Attribute	Attribute Value

Part Number	TPD1E05U06QDPYRQ1
Manufacturer	TI
ChipWorker Part#	CW76019993
Category	Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	X1SON-2
Operating Voltage	5.5 V
Capacitance	400 fF
Breakdown Voltage	6.4 V
Clamping Voltage	14 V
Peak Pulse Power	30 W
Min Breakdown Voltage	6.4 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Height	0.4 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status
ECCN Code	EAR99

Product Description

The TPDxE05U06-Q1 is a family of unidirectional Transient Voltage Suppressor (TVS) Electrostatic Discharge (ESD) protection diodes with ultra-low capacitance. They are rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 level 4 international standard. The ultra-low loading capacitance makes these devices ideal for protecting any high-speed signal applications up to 6 Gbps.
