TPIC6259N - TI

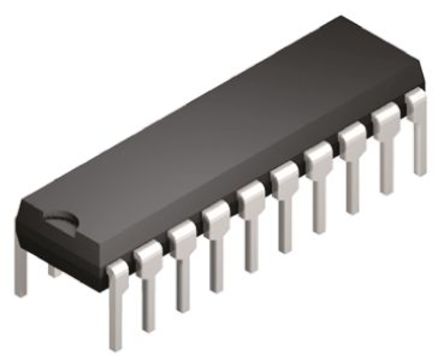

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPIC6259N
Manufacturer

TI
ChipWorker Part#

CW7559042
Category

Latche IC
Package

PDIP-20
Description

Latch, Addressable, Standard, 625ns, 250mA, DIP
Documentation

Datasheet

TPIC6259N Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPIC6259N Specifications

Attribute	Attribute Value

Part Number	TPIC6259N
Manufacturer	TI
ChipWorker Part#	CW7559042
Category	Latche IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	PDIP-20
Supply Voltage (DC)	4.50V (min)
Number of Outputs	8 Output
Output Voltage	≤45.0 V
Output Current	250 mA
Number of Circuits	1 Circuit
Number of Channels	8 Channel
Number of Bits	8 Bit
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	24.33 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17

Product Description

The TPIC6259N is a 8-bit addressable latch controls open-drain DMOS transistor outputs and is designed for general-purpose storage applications in digital systems. Specific uses include working registers, serial-holding registers and decoders or demultiplexers. This is a multi-functional device capable of storing single-line data in eight addressable latches with 3-to-8 decoding or demultiplexing mode active-low DMOS outputs. Four distinct modes of operation are selectable by controlling the clear (CLR\\) and enable (G\\) inputs as enumerated in the function table. In the addressable-latch mode, data at the data-in (D) terminal is written into the addressed latch. The addressed DMOS transistor output inverts the data input with all unaddressed DMOS-transistor outputs remaining in their previous states. In the memory mode, all DMOS-transistor outputs remain in their previous states and are unaffected by the data or address inputs.
Eight power DMOS transistor outputs of 250mA continuous current
Output clamp voltage at 45V
Four distinct function modes
Low power consumption
75mJ Avalanche energy
1.5A Pulsed current per output
