TPS2216 - TI

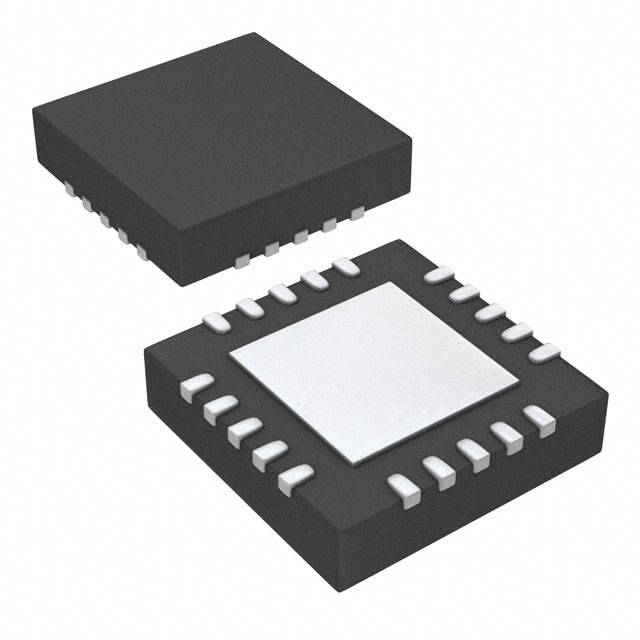

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

29 points

Part No

TPS2216
Manufacturer

TI
ChipWorker Part#

CW392894317
Package

HTSSOP-32
Description

1A Dual-Slot PC Card Power Switch w/ Serial Interface
Documentation

Datasheet
Ships from

Moscow
Наличие

2284 pcs In Stock
Estimated Price

Price on Request

Buy TPS2216

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TPS2216 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TPS2216 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TPS2216
Manufacturer	TI
ChipWorker Part#	CW392894317
Documentation	Datasheet
Case/Package	HTSSOP-32
	expand all
Product Lifecycle Status
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

The TPS2216 PC Card power-interface switch provides an integrated power-management solution for two PC Cards. All of the discrete power MOSFETs, a logic section, current limiting, and thermal protection for PC Card control are combined on a single integrated circuit. This device allows the distribution of 3.3-V, 5-V, and/or 12-V power to the card. The current-limiting feature eliminates the need for fuses. Current-limit reporting can help the user isolate a system fault.
The TPS2216 features a 3.3-V low-voltage mode that allows for 3.3-V switching without the need for 5-V power. This feature facilitates low-power system designs such as sleep modes where only 3.3 V is available. This device also has the ability to program the xVPP outputs independent of the xVCC outputs. A standby mode that changes all output-current limits to 50 mA (typical) has been incorporated.
End-equipment applications for the TPS2216 include: notebook computers, desktop computers, personal digital assistants (PDAs), digital cameras, and bar-code scanners.
The TPS2216 is backward-compatible with the TPS2202A and TPS2206.
Fully Integrated xVCC and xVPP Switching
xVPP Programmed Independent of xVCC
3.3-V, 5-V, and/or 12-V Power Distribution
Low rDS(on) (60-m xVCC Switch Typical)
Short Circuit and Thermal Protection
150-uA (Maximum) Quiescent Current
Standby Mode: 50-mA Current Limit (Typ)
12-V Supply Can Be Disabled
3.3-V Low-Voltage Mode
Meets PC CardTM Standards
TTL-Logic Compatible Inputs
Available in 30-Pin SSOP (DB) and 32-Pin TSSOP (DAP) Packages
Break-Before-Make Switching
Internal Power-On Reset
PC Card is a trademark of PCMCIA (Personal Computer Memory Card International Association).
PowerPAD is a trademark of Texas Instruments Incorporated.
