TPS2816 - TI

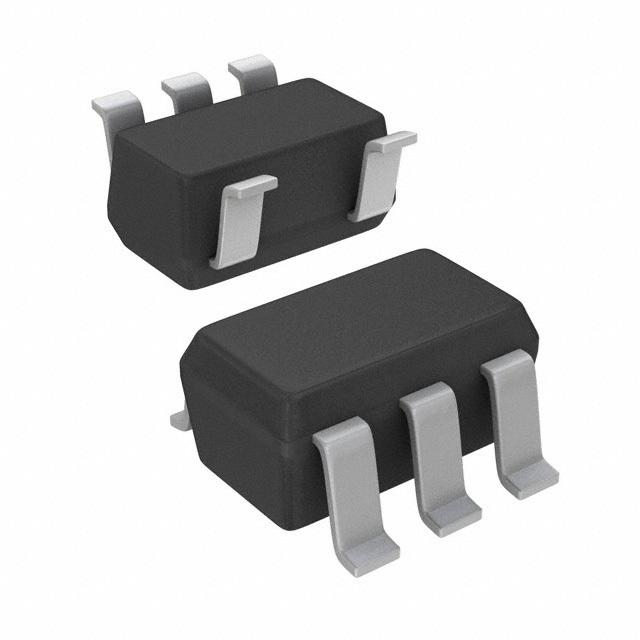

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

44 points

Part No

TPS2816
Manufacturer

TI
ChipWorker Part#

CW64199017
Package

SOT-23-5
Description

Inverting High Speed MOSFET Driver with Active Pullup and Internal Regulator
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 2.85

Buy TPS2816

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

TPS2816 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

TPS2816 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	TPS2816
Manufacturer	TI
ChipWorker Part#	CW64199017
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SOT-23-5
Rise Time	14 ns
Fall Time	14 ns
	expand all
Product Lifecycle Status
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Similar products

Product Description

The TPS28xx single-channel high-speed MOSFET drivers are capable of delivering peak currents of up to 2 A into highly capacitive loads. High switching speeds (tr and tf = 14 ns typ) are obtained with the use of BiCMOS outputs. Typical threshold switching voltages are 2/3 and 1/3 of VCC. The design inherently minimizes shoot-through current.
A regulator is provided on TPS2816 through TPS2819 devices to allow operation with supply inputs between 14 V and 40 V. The regulator output can be used to power other circuits, provided power dissipation does not exceed package limitations. If the regulator is not required, VDD (the regulator input) should be connected to VCC. The TPS2816 and TPS2817 input circuits include an active pullup circuit to eliminate the need for an external resistor when using open-collector PWM controllers. The TPS2818 and TPS2819 are identical to the TPS2816 and TPS2817, except that the active pullup circuit is omitted. The TPS2828 and TPS2829 are identical to the TPS2818 and TPS2819, except that the internal voltage regulator is omitted, allowing quiescent current to drop to less than 15 uA when the inputs are high or low.
The TPS28xx series devices are available in 5-pin SOT-23 (DBV) packages and operate over an ambient temperature range of 40°C to 125°C.
Low-Cost Single-Channel High-Speed MOSFET Driver
ICC ...15-uA Max (TPS2828, TPS2829)
25-ns Max Rise/Fall Times and 40-ns Max Propagation Delay ...1-nF Load
2-A Peak Output Current
4-V to 14-V Driver Supply Voltage Range; Internal Regulator Extends Range to 40 V (TPS2816, TPS2817, TPS2818, TPS2819)
5-pin SOT-23 Package
40°C to 125°C Ambient-Temperature Operating Range
Highly Resistant to Latch-ups
