TPS54040DGQR - TI

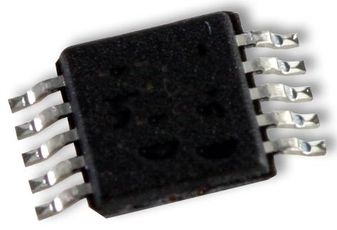

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS54040DGQR
Manufacturer

TI
ChipWorker Part#

CW3955265
Category

DC to DC Converter
Package

PowerPad-MSOP-10
Description

Step-Down Regulator 3.5V to 42V Input, 0.5A Step Down SWIFT Converter with Eco-Mode Conv DC-DC 3.5V to 42V Step Down Single-Out 0.8V to 39V 0.5A 10Pin HVSSOP EP T/R
Documentation

Datasheet

TPS54040DGQR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS54040DGQR Specifications

Attribute	Attribute Value

Part Number	TPS54040DGQR
Manufacturer	TI
ChipWorker Part#	CW3955265
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	PowerPad-MSOP-10
Number of Outputs	1 Output
Output Voltage	0.8V ~ 39V
Output Current	500 mA
Number of Positions	10 Position
Quiescent Current	116 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2.5 MHz
Thermal Shutdown	Yes
Switching Current	0.94 A
Input Voltage (Max)	42 V
Input Voltage (Min)	3.5 V
Output Voltage (Max)	39 V
Output Voltage (Min)	800 mV
Output Current (Max)	0.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.5 V
Input Voltage	3.5V ~ 42V
	expand all
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The TPS54040 device is a 42-V, 0.5-A, step down regulator with an integrated high side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated output supply current to 116 µA. Using the enable pin, shutdown supply current is reduced to 1.3 µA, when the enable pin is low.
Under voltage lockout is internally set at 2.5 V, but can be increased using the enable pin. The output voltage startup ramp is controlled by the slow start pin that can also be configured for sequencing/tracking. An open drain power good signal indicates the output is within 93% to 107% of its nominal voltage.
A wide switching frequency range allows efficiency and external component size to be optimized. Frequency fold back and thermal shutdown protects the part during an overload condition.
The TPS54040 is available in 10-pin thermally enhanced HVSSOP PowerPAD package.
