TPS73018DBVT - TI

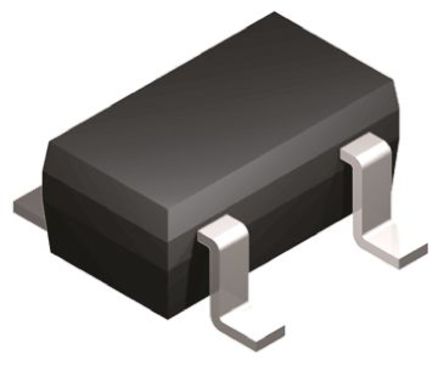

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TPS73018DBVT
Manufacturer

TI
ChipWorker Part#

CW36680163
Category

Voltage Regulator
Package

SOT-23-5
Description

Single Channel LDO Single Output LDO, 200mA, Fixed(1.8V), High PSRR, Low Noise LDO Regulator Pos 1.8V 0.2A 5Pin SOT-23 T/R
Documentation

Datasheet

TPS73018DBVT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TPS73018DBVT Specifications

Attribute	Attribute Value

Part Number	TPS73018DBVT
Manufacturer	TI
ChipWorker Part#	CW36680163
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Power Rating	0.56 W
Number of Outputs	1 Output
Input Voltage (DC)	5.50V (max)
Output Voltage	1.8 V
Output Current	200 mA
Supply Current	250 µA
Number of Channels	1 Channel
Number of Positions	5 Position
Power Dissipation	0.56 W
Quiescent Current	0.17 mA
Output Capacitor Type	Ceramic
voltage rating	120 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Min)	1.8 V
Output Current (Max)	0.2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	560 mW
Accuracy	±2 %
Input Voltage	2.7V ~ 5.5V
	expand all
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The TPS73018DBVT is a 1.8V fixed output low-power low-dropout (LDO) Linear Regulator features high power-supply rejection ratio (PSRR), low noise, fast start-up and excellent line and load transient responses. The device is stable with a small 2.2µF ceramic capacitor on the output. The device family uses an advanced, proprietary BiCMOS fabrication process to yield low-dropout (LDO) voltages. The device achieves fast start-up times (approximately 50µs with a 0.001µF bypass capacitor) while consuming low quiescent current (170µA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1µA. The device exhibits approximately 33µVRMS of output voltage noise at 1.8V output with a 0.01µF bypass capacitor.
68dB at 100Hz High PSRR
33µVrms Low noise
50µs Fast start-up time
Stable with a 2.2µF ceramic capacitor
Excellent load/line transient response
Green product and no Sb/Br
