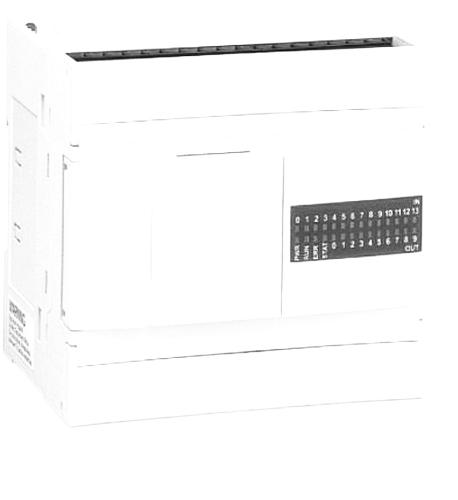

TWDLCAA24DRF - Schneider Electric

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TWDLCAA24DRF
Manufacturer

Schneider Electric
ChipWorker Part#

CW184219063
Description

Controller, Programmable, 14In/10 Relay Out, 120/240VAC, Expandable, Term. Block
Documentation

Datasheet

TWDLCAA24DRF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TWDLCAA24DRF Specifications

Attribute	Attribute Value

Part Number	TWDLCAA24DRF
Manufacturer	Schneider Electric
ChipWorker Part#	CW184219063
Documentation	Datasheet
Mounting Style	Panel, DIN Rail
Supply Voltage (DC)	24.0 V
Number of Outputs	10 Output
Output Current	2 A
Supply Current	450 mA
Number of Inputs	14 Input
Operating Temperature (Max)	50 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	24 VDC
	expand all
Size-Length	90 mm
Size-Width	95 mm
RoHS	RoHS Compliant

Product Description

Designed for simple installations and small, compact machines, TWIDO® Programmable Controllers cover standard applications comprising 10 to 100 Inputs/Outputs (152 I/O Maximum). Available in Compact or Modular versions, they share the same options, I/O Expansions and Programming Software. Compact, simple and flexible, TWIDO® can also communicate on CANopen, Modbus and Ethernet. TWIDO® Controllers, in complete synergy with associated Schneider Electric control products, enable you to combine compactness, performance, flexibility and connectivity. These Controllers connect, without a power supply, to the Magelis(r) XBTN Compact Display/Operator Interface units. TWIDO® connects to TeSys U-Line starters for power control and ATV31 Variable Frequency Drives for high quality performance at a very low cost.
**Features:**
* Flexible — Choose Compact or Modular Base Units
* Self-Configure Your Solution By Adding the Required I/O Expansion Units and Options
* Communication — Treat Yourself to a High Performance, Economical Communication Solution with CANopen, Modbus or Ethernet Capability
* Compact — TWIDO® Can Be Installed Anywhere
* Imagine a Controller with 40 I/O That Can Fit in the Palm of Your Hand; Only 3.7" Wide
* Ease-of-Installation — Need to Add I/O Expansions or Options? No Tools or Cables Required; Units Snap Together
**Specifications:**
* Communications: Base Units Include RS485 Port and Modbus Protocol
