XRCGB27M120F3M00R0 - muRata

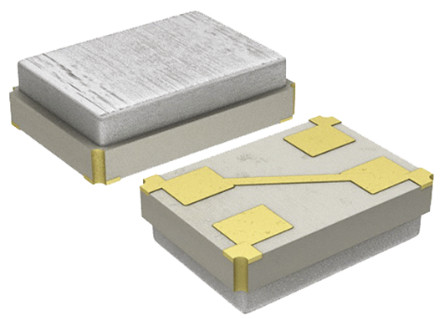

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

XRCGB27M120F3M00R0
Manufacturer

muRata
ChipWorker Part#

CW2619300
Category

Crystal
Package

SMD-4
Description

MURATA XRCGB27M120F3M00R0 Crystal, 27MHz, SMD, 2mm x 1.6mm, 40ppm, 6pF, 30ppm, XRCGB Series
Documentation

Datasheet

XRCGB27M120F3M00R0 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

XRCGB27M120F3M00R0 Specifications

Attribute	Attribute Value

Part Number	XRCGB27M120F3M00R0
Manufacturer	muRata
ChipWorker Part#	CW2619300
Category	Crystal
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SMD-4
Frequency	27.12 MHz
Frequency Stability	±40 ppm
Frequency Tolerance	±30 ppm
Equivalent Series Resistance (ESR)	150 Ω
Load Capacitance	6 pF
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
	expand all
Size-Length	2 mm
Size-Width	1.6 mm
Size-Height	0.65 mm
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The XRCGB27M120F3M00R0 is a 2 x 1.6mm 30 and 40ppm surface-mount Crystal Unit with highly accurate frequency. The XRCGB series crystal for applications to be necessary for high accuracy resonator. Especially, it is the best for the communication clocks such as S-ATA and USB2.0.
150R Maximum equivalent series resistance
300µW Maximum drive level

expand all
