2N3440 ,BJT Transistor, BJT - ST Microelectronics

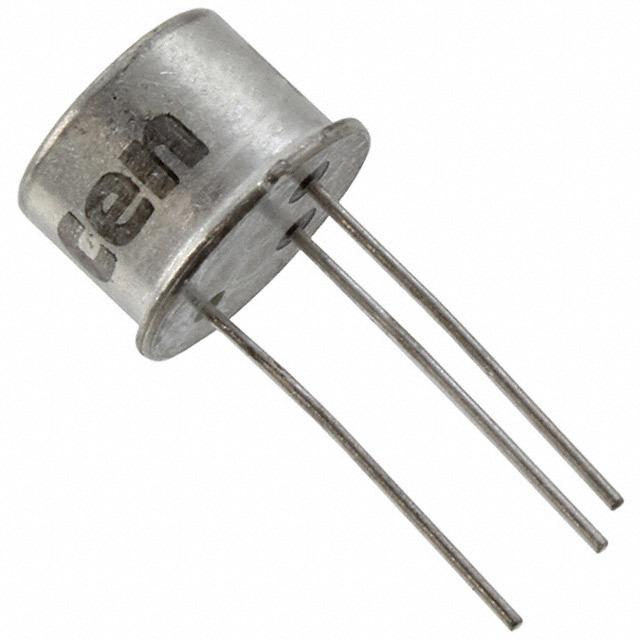

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

93 points

Part No

2N3440
Manufacturer

ST Microelectronics
ChipWorker Part#

CW60146478
Category

BJT Transistor, BJT
Package

TO-39-3
Description

Trans GP BJT NPN 250V 1A 10000mW 3Pin TO-39 Bag
Documentation

Datasheet
Ships from

Moscow
Наличие

134940 pcs In Stock
Estimated Price

$ 0.3

Buy 2N3440

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

2N3440 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

2N3440 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	2N3440
Manufacturer	ST Microelectronics
ChipWorker Part#	CW60146478
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-39-3
Frequency	15 MHz
Voltage Rating (DC)	300 V
Current Rating	1.00 A
Power Rating	1 W
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	10000 mW
Breakdown Voltage (Collector to Emitter)	250 V
hFE Min	40 @20mA, 10V
hFE Max	160
Input Power (Max)	1 W
DC Current Gain (hFE)	160
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	10000 mW
	expand all
Size-Length	9.4 mm
Size-Width	9.4 mm
Size-Height	6.6 mm
Material	Silicon
Operating Temperature	200℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Bag
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
