6ESRFC3 - TE Connectivity

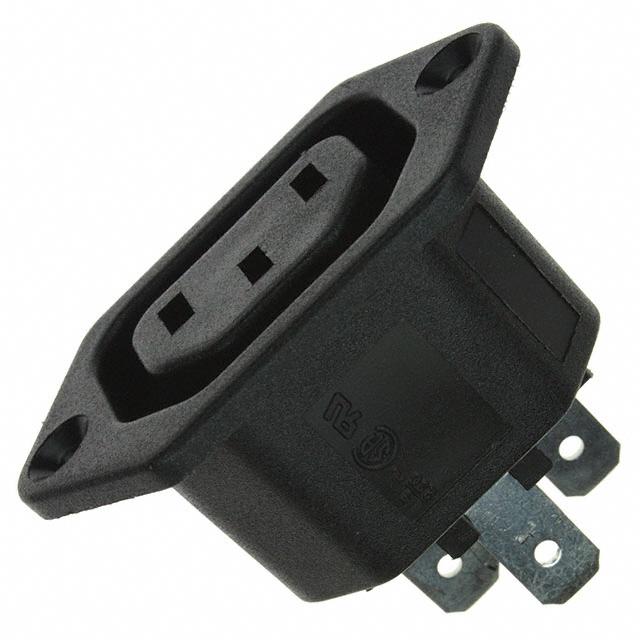

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

6ESRFC3
Manufacturer

TE Connectivity
ChipWorker Part#

CW43000637
Category

Power Entry Module
Package

120
Description

CONNECTOR, POWER ENTRY, RECEPTACLE, 15A; Product Range:SR Series; Gender:Receptacle; Voltage Rating:250VAC; Current Rating:15A; Connector Mounting:Panel Mount; Contact Termination Type:-; Filter Terminals:Quick Connect ;RoHS Compliant: Yes
Documentation

Datasheet

6ESRFC3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

6ESRFC3 Specifications

Attribute	Attribute Value

Part Number	6ESRFC3
Manufacturer	TE Connectivity
ChipWorker Part#	CW43000637
Category	Power Entry Module
Documentation	Datasheet
Mounting Style	Snap-In
Case/Package	120
Number of Contacts	3 Contact
Gender	Female
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	15 A
Number of Positions	3 Position
Current Rating (Max)	15A/触头
Operating Temperature (Max)	65 ℃
Voltage Rating (Max)	250 VAC
Voltage Rating	250 VAC
Voltage Rating (AC Max)	250 V
	expand all
Size-Length	35.3 mm
Size-Width	28.2 mm
Size-Height	35.7 mm
Contact Material	Brass
Operating Temperature	65 ℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
HTS Code	8536698000
ECCN Code	EAR99

Product Description

Power Inlet Connectors with a full line of popular AC receptacles
