AD567JD - ADI

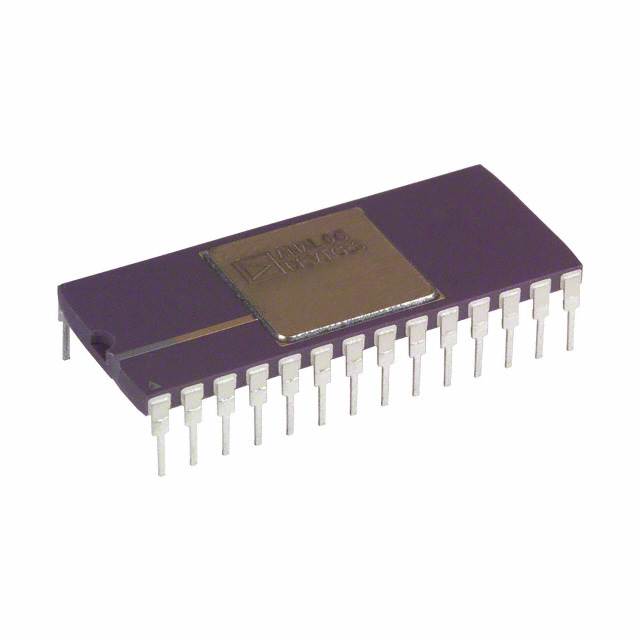

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AD567JD
Manufacturer

ADI
ChipWorker Part#

CW2464255
Category

Digital to Analog, DAC IC
Package

CDIP-28
Description

DAC 1CH 12Bit 28Pin SBCDIP Tube
Documentation

Datasheet

AD567JD Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AD567JD Specifications

Attribute	Attribute Value

Part Number	AD567JD
Manufacturer	ADI
ChipWorker Part#	CW2464255
Category	Digital to Analog, DAC IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	CDIP-28
Number of Outputs	1 Output
Supply Current	0.00 A
Number of Channels	1 Channel
Number of Bits	12 Bit
Power Dissipation	0.495 W
Resolution (Bits)	12.0 Bit
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	495 mW
Number of DACs	1 DAC
	expand all
Size-Length	36.83 mm
Size-Width	13.97 mm
Size-Height	5.08 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
HK STC License	NLR

Product Description

Product Details
The AD567 is a complete high speed 12-bit digital-to-analog converter including a high stability buried zener voltage reference and a double buffer input latch on a single chip. The converter used 12 precision high speed bipolar current steering switches and a laser trimmed thin filmed resistor network to provide fast settling time and high accuracy.
Microprocessor compatibility is achieved by the on-chip double-buffered latch. The design of the input latch allows direct interface to 4-, 8-, 12-, or 16-bit buses. The 12 bits of data from the first rank of latches can then be transferred the second rank, avoiding generations of spurious analog output values. The latch responds to the strobe pulses as short as 100 ns, allowing use with the fastest available microprocessors.
The functional completeness and high performance in the AD567 results from a combination of advanced switch design, high speed bipolar manufacturing process, and the proven laser wafer-trimming (LWT) technology. The AD567 is trimmed at the wafer level and is specified to ±1/4 LSB maximum linearity error (K grade) at 25°C and ±1/2 LSB at the full operating temperature range.
The subsurface (buried) Zenor diode on the chip provides a low-noise voltage reference which has long term stability and temperature drift characteristics comparable to the best discrete reference diodes. The laser trimming process which provides the excellent linearity is also used to trim both the absolute value of the reference as well as its temperature coefficient. The AD567 is thus well suited for wide temperature range performance with ±1/2 LSB maximum linearity error and guaranteed monotonicity over the full temperature range. Typical full scale gain T.C. is 10 ppm/°C.
The AD567 is available in three performance grades. The AD567J and K are specified for use over the 0 to 70°C temperature range and are available in either 28-pin hermetically sealed, ceramic DIP or a 28-pin molded plastic DIP (N Package). The AD567S is specified for the -55°C to +125°C range and is available in the ceramic package.
Data Sheet, Rev. A, 1/83
### Features and Benefits
Single chip construction
Double buffered latch for 8-bit µP-compatibility
Fast settling time: 500 ns max to ±1/2 LSB
High stability buried Zener reference on chip
|
Monotinicity guaranteed over temperature
Linearity guaranteed over temperature: ½ LSB max (AD567K)
Guaranteed for operation with ±12 V or ±15 V supplies
See Data Sheet for Additional Information
---|---
