AD7694 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD7694
Manufacturer	ADI
ChipWorker Part#	CW353114303
Documentation	Datasheet
	expand all
Product Lifecycle Status	Active

Similar & Replacement Parts

Similar products

Product Description

Product Details

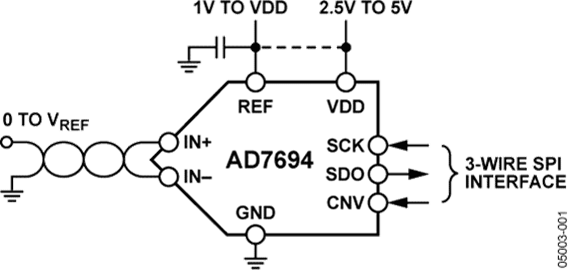

The AD7694 is a 16-bit, 250 kSPS, charge redistribution successive-approximation Analog-to-Digital Converter which operates from a single power supply, VDD between 2.7 V to 5.25 V. It con tains a very low power high-speed 16-bit sampling ADC with no missing codes (B grade), an internal conversion clock and a SPI compatible serial interface port. The part also contains a low noise, wide bandwidth, very short aperture delay track/hold circuit. On the CNV rising edge, it samples an analog input IN+ between 0 V to REF with respect to a ground sense IN-. The reference voltage REF is applied externally and can be set up to the supply voltage.
Its power scales linearly with throughput.
The AD7694 is housed in a 8-lead µSOIC with operation specified from –40°C to +85°C.
**Applications**
Battery Powered Equipments:
Medical instruments
Mobile communications
Personal digital assistants
Data Acquisition
Instrumentation
Process Control
### Features and Benefits
16 Bits Resolution
Throughput: 250 kSPS
INL: ±4 LSB Max
Power Dissipation:
800 µA @ 5V/100 kSPS
540 µA @ 2.7V/100 kSPS
Pseudo-Differential Analog Input Range: 0 V to VREF with VREF up to VDD
S/(N+D): 92 dB @ 20 kHz
No Pipeline Delay
Single Supply Operation 2.7 V or 5 V
Serial Interface SPI®/QSPI™/µWire/DSP compatible
µSOIC Package (µSO8)
Improved 2nd Source of LTC1864 and LTC1864L
