AD8031ARTZ ,Operational Amplifier, OP Amp IC - ADI

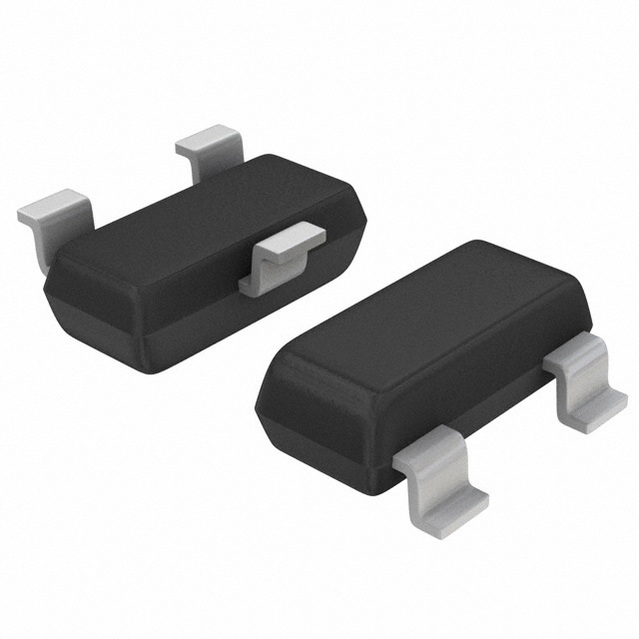

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

91 points

Part No

AD8031ARTZ
Manufacturer

ADI
ChipWorker Part#

CW62441761
Category

Operational Amplifier, OP Amp IC
Package

SOT-23
Description

ANALOG DEVICES AD8031ARTZ Operational Amplifier, Single, 1 Amplifier, 80MHz, 30V/µs, 2.7V to 12V, SOT-23, 5Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 3.01

Buy AD8031ARTZ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

AD8031ARTZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

AD8031ARTZ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	AD8031ARTZ
Manufacturer	ADI
ChipWorker Part#	CW62441761
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23
Number of Positions	5 Position
Bandwidth	80 MHz
Slew Rate	30.0 V/μs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 12V
Supply Voltage (Max)	12 V
Supply Voltage (Min)	2.7 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

The AD8031ARTZ is a Single Supply Rail-to-rail Input/Output Amplifier features high speed performance with 80MHz of small signal bandwidth, 30V/µs slew rate and 125ns settling time. This performance is possible while consuming less than 4.0mW of power from a single 5V supply. These features increase the operation time of high speed, battery-powered systems without compromising dynamic performance. This amplifier offer excellent signal quality for only 800µA of supply current per amplifier, THD is -62dBc with a 2V p-p, 1MHz output signal and -86dBc for a 100kHz, 4.6V p-p signal on +5V supply. The low distortion and fast settling time make them ideal as buffers to single-supply ADCs. Operating on supplies from +2.7 to +12V and dual supplies up to ±6V, the AD8031 is ideal for a wide range of applications from battery-operated systems with large bandwidth requirements to high speed systems where component density requires lower power dissipation.
Low power
800µA/amplifier Supply current
High speed and fast settling on 5V
125ns Settling time to 0.1%
No phase reversal with input 0.5V beyond supplies
Input CMVR extends beyond rails by 200mV
Output swing to within 20mV of either rail
Low distortion
ESD sensitive device, take proper precaution while handling the device.
