BCW70LT1G - ON Semiconductor

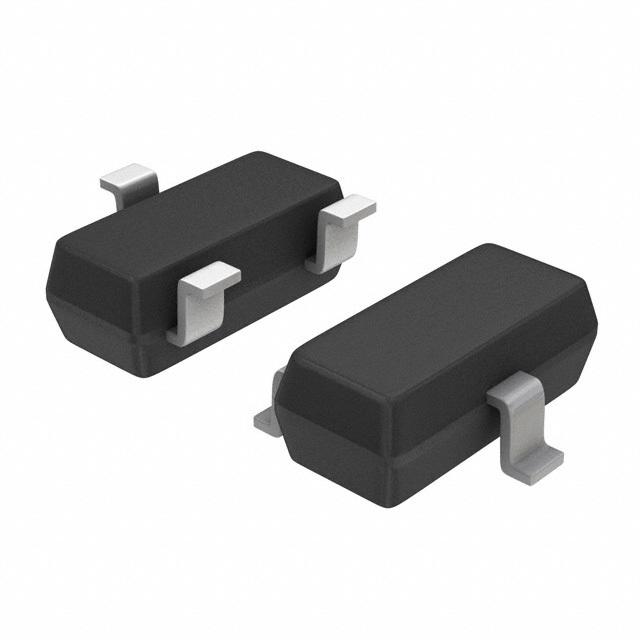

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BCW70LT1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW11245266
Category

BJT Transistor, BJT
Package

SOT-23-3
Description

SOT-23 PNP 45V 0.1A
Documentation

Datasheet

BCW70LT1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BCW70LT1G Specifications

Attribute	Attribute Value

Part Number	BCW70LT1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW11245266
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	-45.0 V
Current Rating	-100 mA
Number of Positions	3 Position
Polarity	PNP
Power Dissipation	225 mW
Breakdown Voltage (Collector to Emitter)	45 V
Continuous Collector Current	0.1A
hFE Min	215 @2mA, 5V
Input Power (Max)	225 mW
DC Current Gain (hFE)	215
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300 mW
	expand all
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	0.94 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

**Small Signal PNP Transistors, ON Semiconductor**
These ON Semiconductor Bipolar transistors can amplify analog or digital signals. They can also switch DC or function as an oscillator.
