C1210V104KCRACTU - KEMET Corporation

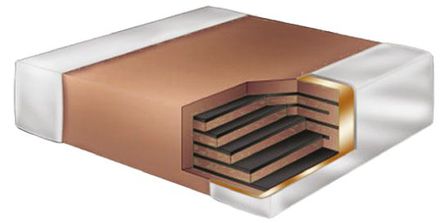

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

C1210V104KCRACTU
Manufacturer

KEMET Corporation
ChipWorker Part#

CW12342400
Category

Ceramic Capacitor
Package

1210
Description

Capacitor, Ceramic, SMD, MLCC, Arcshield, High Voltage, Temp Stable, 0.1uF, /-10% Tol, 500V, X7R, 1210 (3225 metric)
Documentation

Datasheet

C1210V104KCRACTU Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

C1210V104KCRACTU Specifications

Attribute	Attribute Value

Part Number	C1210V104KCRACTU
Manufacturer	KEMET Corporation
ChipWorker Part#	CW12342400
Category	Ceramic Capacitor
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package (SI)	3225
Case/Package	1210
Voltage Rating (DC)	500 V
Operating Voltage	500 V
Insulation Resistance	1 GΩ
Capacitance	0.1 µF
Capacitance Tolerance	±10 %
Dielectric Characteristic	X7R
Threshold Voltage	Adjustable
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	500 V
	expand all
Size-Length	3.2 mm
Size-Width	2.5 mm
Size-Height	1.7 mm
Dielectric Material	Ceramic
Operating Temperature	-55℃ ~ 125℃
Temperature Coefficient	±15 %
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	R
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The V series ArcShield high voltage surface mount Multilayer Ceramic Chip Capacitor in X7R dielectric is designed for use in high voltage applications susceptible to surface arcing (arc-over discharge). The phenomenon of surface arcing is caused by a high voltage gradient between the two termination surfaces or between one of the termination surfaces and the counter internal electrode structure within the ceramic body. It occurs most frequently at application voltages that meet or exceed 300V, in high humidity environments and in chip sizes with minimal bandwidth separation (creepage distance). This phenomenon can either damage surrounding components or lead to a breakdown of the dielectric material, ultimately resulting in a short-circuit condition (catastrophic failure mode). The highly reliable base metal dielectric system combined with unique internal shield electrode structure that is designed to suppress an arc-over event while increasing available capacitance.
Patented technology
Permanent internal arc protection
Protective surface coating not required
Base metal electrode (BME) dielectric system
Industry leading CV values
Exceptional performance at high frequencies
Low ESR and ESL
Non-polar device, minimizing installation concerns
100% Pure matte tin-plated termination finish allowing for excellent solderability
SnPb plated termination finish option available (5% Pb minimum)
