CD4049UBE - TI

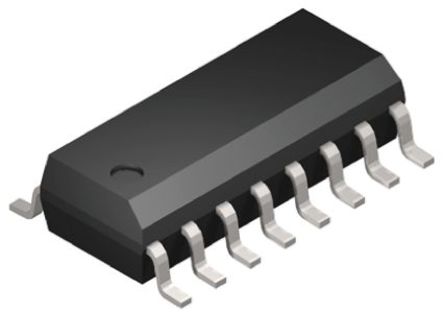

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CD4049UBE
Manufacturer

TI
ChipWorker Part#

CW52400
Category

Logic Control, Logic Gate IC
Package

PDIP-16
Description

Buffer/Converter 6CH Inverting CMOS 16Pin PDIP Tube
Documentation

Datasheet

CD4049UBE Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CD4049UBE Specifications

Attribute	Attribute Value

Part Number	CD4049UBE
Manufacturer	TI
ChipWorker Part#	CW52400
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	3.00V ~ 18.0V
Number of Outputs	6 Output
Number of Circuits	6 Circuit
Number of Channels	6 Channel
Number of Positions	16 Position
Number of Bits	6 Bit
Propagation Delay Max (tpd)	150 ns
Voltage Nodes	5.00 V, 10.0 V, 15.0 V
Output Current Drive	-231 µA
Number of Inputs	6 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	3V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99

Product Description

The CD4049UBE is a CMOS hex inverting buffer/converter in 16 pin DIP package. It features logic level conversion using single supply voltage (VCC). The input high level signal (VIH) can exceed VCC supply voltage when this device is used for logic level conversions. The CD4049UBE is intended for use as CMOS to DTL/TTL converters and can drive directly two DTL/TTL loads. Typical application includes CMOS to DTL/TTL hex converter, CMOS current sink or source driver and CMOS high to low logic level converter.
High sink current for driving two TTL loads
High to low level logic conversion
100% tested for quiescent current at 20V
Maximum input current of 1µA at 18V (full package temperature range) and 100nA at 18V (25°C)
5V, 10V and 15V parametric ratings
Supply voltage range from 3V to 18V
Operating temperature range -55°C to 125°C
This device is sensitive to ElectroStatic Discharge (ESD), follow proper IC handling procedures.
