FDS6994S ,MOSFET, MOSFET Transistor - Fairchild

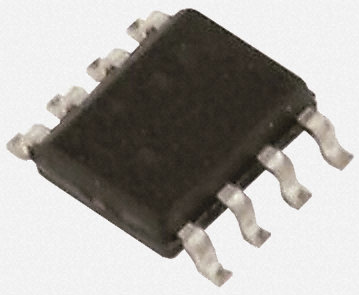

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

96 points

Part No

FDS6994S
Manufacturer

Fairchild
ChipWorker Part#

CW65347457
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

Trans MOSFET N-CH 30V 6.9A/8.2A 8Pin SOIC N T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

53117 pcs In Stock
Estimated Price

$ 0.85

Buy FDS6994S

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

FDS6994S Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

FDS6994S Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	FDS6994S
Manufacturer	Fairchild
ChipWorker Part#	CW65347457
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Voltage Rating (DC)	30.0 V
Current Rating	8.20 A
Drain to Source Resistance (on) (Rds)	15.0 mΩ
Polarity	N-Channel
Power Dissipation	2 W
Input Capacitance	2.81 nF
Gate Charge	25.0 nC
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30.0 V
Breakdown Voltage (Gate to Source)	±16.0 V
Continuous Drain Current (Ids)	6.90 A, 8.20 A
Rise Time	8.00 ns
Input Capacitance (Ciss)	800pF @15V(Vds)
Input Power (Max)	900 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2000 mW
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

General Description
The FDS6994S is designed to replace two single SO-8 MOSFETs and Schottky diode in synchronous DC:DC power supplies that provide various peripheral voltages for notebook computers and other battery powered electronic devices. FDS6994S contains two unique 30V, N-channel, logic level, PowerTrench MOSFETs designed to maximize power conversion efficiency.
Features
• Q2: Optimized to minimize conduction losses
Includes SyncFET Schottky body diode
8.2A, 30V RDS(on) = 15 mΩ @ VGS = 10V
RDS(on) = 17.5 mΩ @ VGS = 4.5V
• Q1: Optimized for low switching losses
Low gate charge (85.5 nC typical)
6.9A, 30V RDS(on) = 21 mΩ @ VGS = 10V
RDS(on) = 26 mΩ @ VGS = 4.5V

expand all
