FDY301NZ - Fairchild

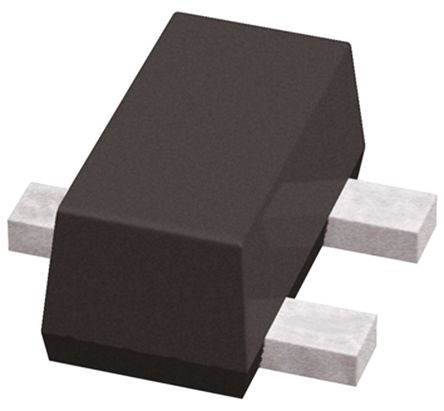

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FDY301NZ
Manufacturer

Fairchild
ChipWorker Part#

CW12599550
Category

MOSFET, MOSFET Transistor
Package

SC-89-6
Description

Small Signal Field-Effect Transistor, 0.2A I(D), 20V, 1Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, ROHS COMPLIANT, SC-89, 3Pin
Documentation

Datasheet

FDY301NZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FDY301NZ Specifications

Attribute	Attribute Value

Part Number	FDY301NZ
Manufacturer	Fairchild
ChipWorker Part#	CW12599550
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-89-6
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	5 Ω
Polarity	N-Channel
Power Dissipation	625 mW
Threshold Voltage	1.5 V
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	20 V
Breakdown Voltage (Gate to Source)	±12.0 V
Continuous Drain Current (Ids)	200 mA
Rise Time	8 ns
Input Capacitance (Ciss)	60pF @10V(Vds)
Input Power (Max)	446 mW
Fall Time	2.4 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	625 mW
	expand all
Size-Length	1.7 mm
Size-Width	0.98 mm
Size-Height	0.78 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The FDY301NZ is a single N-channel MOSFET produced using Fairchild Semiconductor"s advanced PowerTrench® process to optimize the RDS (ON) at VGS = 2.5V. It is suitable for Li-ion battery pack application.
