IR2214SSTRPBF ,FET Driver - Infineon

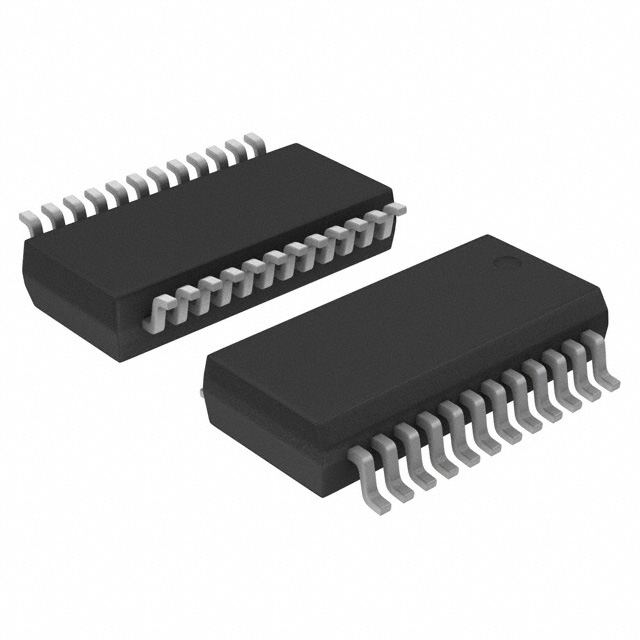

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
91 points
-
Part NoIR2214SSTRPBF
-
ManufacturerInfineon
-
ChipWorker Part#CW6611196
-
CategoryFET Driver
-
PackageSSOP-24
-
DescriptionDriver 1.2kV 3A 2Out Hi/Lo Side Half Brdg Non-Inv 24Pin SSOP T/R
-
DocumentationDatasheet
-
