L4962A - ST Microelectronics

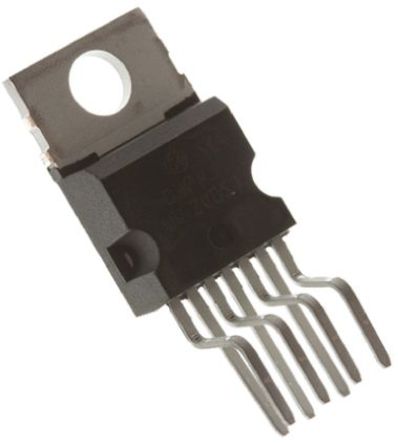

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

L4962A
Manufacturer

ST Microelectronics
ChipWorker Part#

CW16427585
Category

DC to DC Converter
Package

DIP
Description

Driver; DC-DC converter; 1.5A; 5.1÷40V; Channels:1; DIP16
Documentation

Datasheet

L4962A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

L4962A Specifications

Attribute	Attribute Value

Part Number	L4962A
Manufacturer	ST Microelectronics
ChipWorker Part#	CW16427585
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	DIP
Frequency	150 GHz
Supply Voltage (DC)	9.00 V
Number of Outputs	1 Output
Output Voltage	5.1.40 V
Output Current	1.5 A
Number of Channels	1 Channel
voltage rating	1.50 V
Topology	Buck
	expand all
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

DESCRIPTION
The L4962 is a monolithic power switching regulator delivering 1.5A at a voltage variable from 5V to 40V in step down configuration. Features of the device include current limiting, soft start, thermal protection and 0 to 100% duty cycle for continuous operating mode.The L4962 is mounted in a 16-lead Powerdip plastic package and Heptawatt package and requires very few external components. Efficient operation at switching frequencies up to 150KHz allows a reduction in the size and cost of external filter components.
1.5A OUTPUT CURRENT
5.1V TO 40V OUTPUT VOLTAGE RANGE
PRECISE (±2%) ON-CHIP REFERENCE
HIGH SWITCHING FREQUENCY
VERY HIGH EFFICIENCY (UP TO 90%)
VERY FEW EXTERNAL COMPONENTS
SOFT START
INTERNAL LIMITING CURRENT
THERMAL SHUTDOWN
