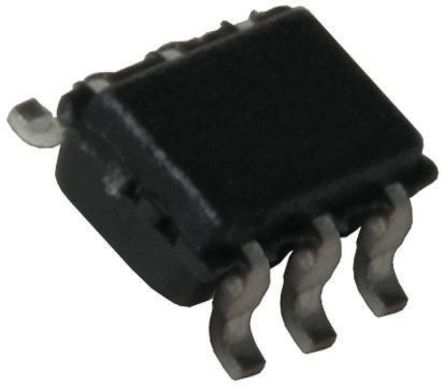

LMR14006XDDCT ,Voltage Regulator - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

147 points

Part No

LMR14006XDDCT
Manufacturer

TI
ChipWorker Part#

CW8926700
Category

Voltage Regulator
Package

TSOT-23-6
Description

Conv DC-DC 4V to 40V Step Down Single-Out -1V to 40V/5V 0.6A Automotive 6Pin TSOT-23 T/R
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.15

Buy LMR14006XDDCT

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

LMR14006XDDCT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

LMR14006XDDCT Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	LMR14006XDDCT
Manufacturer	TI
ChipWorker Part#	CW8926700
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Number of Outputs	1 Output
Output Voltage	0.765.38.4 V
Output Current	600 mA
Number of Channels	1 Channel
Number of Positions	6 Position
Quiescent Current	28.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	1.1 MHz
Topology	Buck
Switching Current	1.2 A
Input Voltage (Max)	40 V
Input Voltage (Min)	4 V
Output Voltage (Max)	38.4 V
Output Voltage (Min)	0.765 V
Output Current (Max)	0.6 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4 V
Input Voltage	40 V
	expand all
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2017/07/07

Similar & Replacement Parts

Similar products

Product Description

The LMR14006XDDCT is a SIMPLE SWITCHER® PWM DC-to-DC Buck/Step-down Regulator with high efficiency sleep mode. The regulator"s standby current is 28µA in sleep mode, which is suitable for battery-operating systems. An ultra low 1µA current can further prolong battery life in shutdown mode. Operating frequency is fixed at 1.1MHz allowing the use of small external components while still being able to have low output ripple voltage. Soft-start and compensation circuits are implemented internally and this allows the device to be used with minimized external components. It is optimized for up to 600mA load current which has a 0.765V typical feedback voltage. The device has built-in protection features such as pulse by pulse current limit, thermal sensing and shutdown due to excessive power dissipation.
