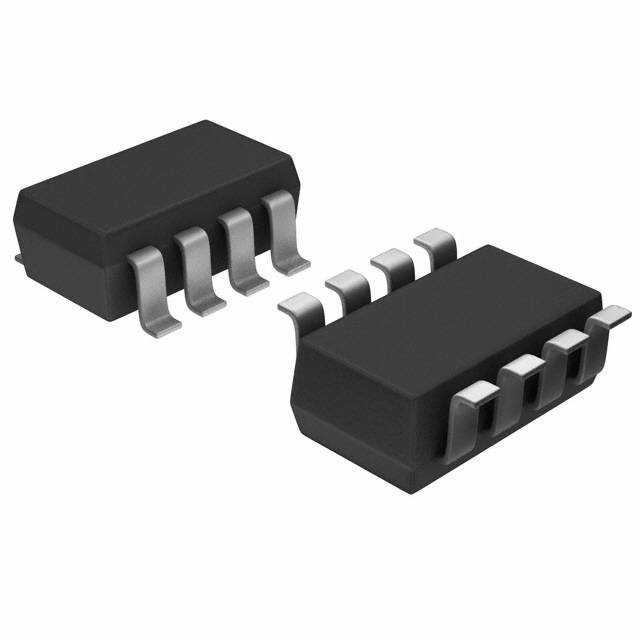

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MAX3311EEUB+
Manufacturer

Maxim Integrated
ChipWorker Part#

CW39634608
Category

Interface IC, Interface Controller
Package

TFSOP-10
Description

Single Transmitter/Receiver RS-232 10Pin uMAX
Documentation

Datasheet

MAX3311EEUB+ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MAX3311EEUB+ Specifications

Attribute	Attribute Value

Part Number	MAX3311EEUB+
Manufacturer	Maxim Integrated
ChipWorker Part#	CW39634608
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	TFSOP-10
Supply Voltage (DC)	4.50V (min)
Supply Current	100 µA
Number of Positions	10 Position
Data Rate	460 kbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	3.05 mm
Size-Width	3.05 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The MAX3311EEUB+ is a low-power, 5V EIA/TIA-232-compatible Transceiver. All transmitter outputs and receiver inputs are protected to ±15kV using the human body model, making these devices ideal for applications where more robust transceivers are required. Both devices have one transmitter and one receiver. The transmitters have a proprietary low-dropout transmitter output stage enabling RS-232-compatible operation from a +5V supply with a single inverting charge pump. This transceiver require only three 0.1µF capacitors and will run at data rates up to 460kbps while maintaining RS-232-compatible output levels. It features a 1µA shutdown mode. In shutdown the device turns off the charge pump, pulls V- to ground and the transmitter output is disabled.
1µA Low-power shutdown
Receiver active in shutdown
0.5V Input hysteresis
5kR Input resistance
300R (Vcc=0, transmitter output=±2V) Output resistance
460kbps Maximum data rate
100ns Transmitter skew
