MC14093BCPG - ON Semiconductor

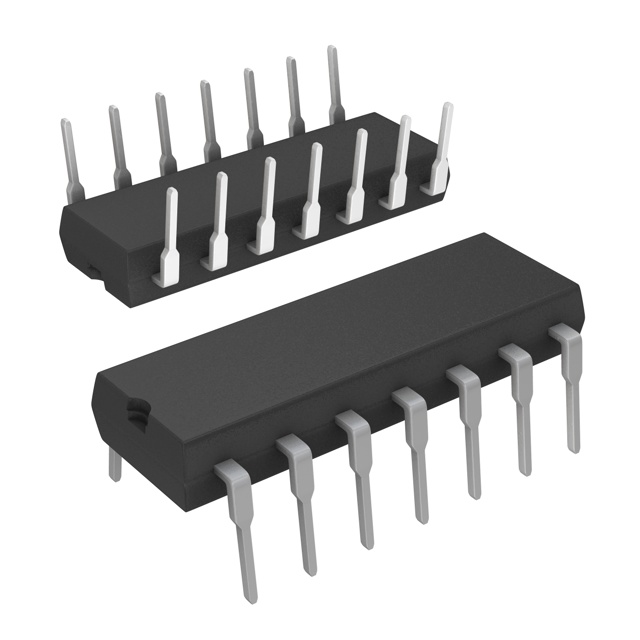

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoMC14093BCPG
-
ManufacturerON Semiconductor
-
ChipWorker Part#CW94956703
-
CategoryLogic Control, Logic Gate IC
-
PackageDIP-14
-
DescriptionNAND Gate 4Element 2IN CMOS 14Pin PDIP Rail
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
MC14093BCPG Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
MC14093BCPG Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | MC14093BCPG |
| Manufacturer | ON Semiconductor |
| ChipWorker Part# | CW94956703 |
| Category | Logic Control, Logic Gate IC |
| Documentation | Datasheet |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | DIP-14 |
| Supply Voltage (DC) | 3.00V (min) |
| Operating Voltage | 3V ~ 18V |
| Number of Outputs | 1 Output |
| Output Current | 8.80 mA |
| Supply Current | 30 μA |
| Number of Circuits | 4 Circuit |
| Number of Gates | 4 Gate |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Supply Voltage | 3V ~ 18V |
| expand all | |
| Size-Length | 19.56 mm |
| Size-Height | 3.68 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
Product Description
- The MC14093B Schmitt trigger is constructed with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure. These devices find primary use where low power dissipation and/or high noise immunity is desired. The MC14093B may be used in place of the MC14011B quad 2−input NAND gate for enhanced noise immunity or to “square up” slowly changing waveforms.
- Features
- • Supply Voltage Range = 3.0 Vdc to 18 Vdc
- • Capable of Driving Two Low−Power TTL Loads or One Low−Power
- Schottky TTL Load Over the Rated Temperature Range
- • Triple Diode Protection on All Inputs
- • Pin−for−Pin Compatible with CD4093
- • Can be Used to Replace MC14011B
- • Independent Schmitt−Trigger at each Input
- • Pb−Free Packages are Available
