NTMFS4925NT1G - ON Semiconductor

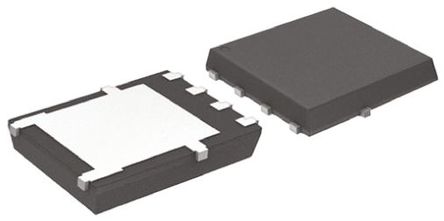

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NTMFS4925NT1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW29972040
Category

MOSFET, MOSFET Transistor
Package

SO-8FL
Description

SO-FL N-CH 30V 25.2A
Documentation

Datasheet

NTMFS4925NT1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NTMFS4925NT1G Specifications

Attribute	Attribute Value

Part Number	NTMFS4925NT1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW29972040
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SO-8FL
Number of Channels	1 Channel
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0045 Ω
Polarity	N-CH
Power Dissipation	6.16 W
Threshold Voltage	1.7 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	25.2A
Rise Time	32.7 ns
Input Capacitance (Ciss)	1264pF @15V(Vds)
Input Power (Max)	920 mW
Fall Time	6.2 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	920mW (Ta), 23.2W (Tc)
	expand all
Size-Length	5.1 mm
Size-Width	6.1 mm
Size-Height	1.1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 30V 9.7A (Ta), 48A (Tc) 920mW (Ta), 23.2W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
