SMF14A - Littelfuse

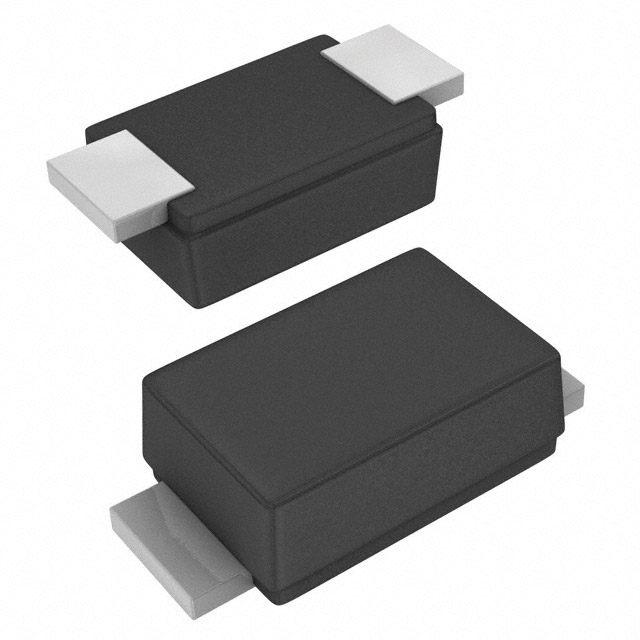

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SMF14A
Manufacturer

Littelfuse
ChipWorker Part#

CW9612963
Category

Diode
Package

SOD-123-2
Description

Diode TVS Single Uni-Dir 14V 200W 2Pin SOD-123F T/R
Documentation

Datasheet

SMF14A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SMF14A Specifications

Attribute	Attribute Value

Part Number	SMF14A
Manufacturer	Littelfuse
ChipWorker Part#	CW9612963
Category	Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123-2
Capacitance	150 pF
Breakdown Voltage	17.2 V
Number of Positions	2 Position
Power Dissipation	200 W
Clamping Voltage	23.2 V
Test Current	1 mA
Max Breakdown Voltage	17.2 V
Peak Pulse Power	200 W
Min Breakdown Voltage	15.6 V
Reverse Breakdown Voltage	15.6 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

If you"re worried that your electronic equipment may experience electrical overstress from electrostatic discharge then this SMF14A TVS diode from Littelfuse is perfect for you. Its maximum leakage current is 1 μA. This device"s maximum clamping voltage is 23.2 V and minimum breakdown voltage is 15.6 V. Its test current is 1 mA. Its peak pulse power dissipation is 200 W. This TVS diode has an operating temperature range of -55 °C to 150 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
