SUCW101215C - Cosel

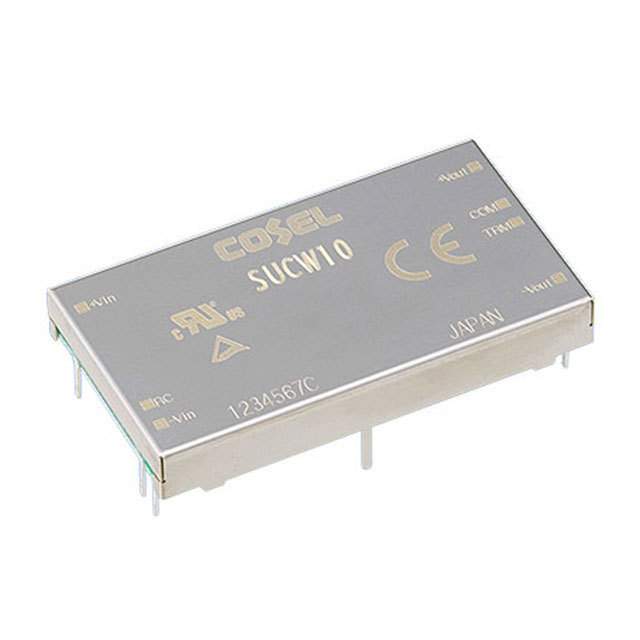

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SUCW101215C
Manufacturer

Cosel
ChipWorker Part#

CW149517193
Category

DC to DC Converter, DC/DC Converter
Package

DIP-7
Description

Module DC-DC 2Out 15V/-15V 0.35A 10W 7Pin DIP
Documentation

Datasheet

SUCW101215C Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SUCW101215C Specifications

Attribute	Attribute Value

Part Number	SUCW101215C
Manufacturer	Cosel
ChipWorker Part#	CW149517193
Category	DC to DC Converter, DC/DC Converter
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	DIP-7
Number of Outputs	2 Output
Output Current	0.35 A
Isolation Voltage	500 V
Input Voltage (Max)	18 V
Input Voltage (Min)	9 V
Output Current (Max)	350mA, 350mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	9V ~ 18V
	expand all
Size-Length	1.58 in
Size-Width	0.87 in
Size-Height	0.28 in
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	PB free

Product Description

**SUW Series**
Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V, Rated Output Wattage: 1.5 - 10W
**Features**
* SMD mounting type and through-hole mounting type
* High efficiency
* Built-in overcurrent protection circuits
* Built-in remote ON/OFF (SU/SUC 3, 6, 10)
* High reliability: not built-in aluminum and tantalum electrolytic capacitor
