TM4C1294NCPDTT3 - TI

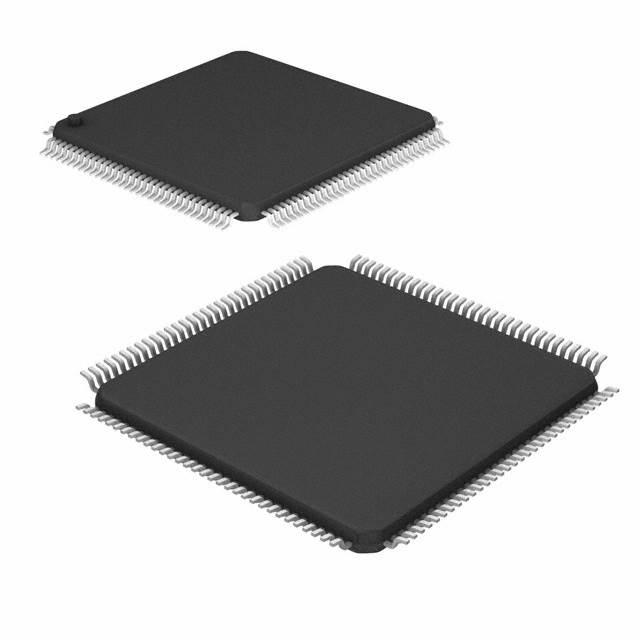

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

TM4C1294NCPDTT3
Manufacturer

TI
ChipWorker Part#

CW6082466
Category

Microcontroller, MCU IC
Package

TQFP-128
Description

MCU 32Bit Tiva C ARM Cortex M4F RISC 1024KB Flash 1.2V/3.3V 128Pin TQFP
Documentation

Datasheet

TM4C1294NCPDTT3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

TM4C1294NCPDTT3 Specifications

Attribute	Attribute Value

Part Number	TM4C1294NCPDTT3
Manufacturer	TI
ChipWorker Part#	CW6082466
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	128 Pin
Case/Package	TQFP-128
Frequency	120 MHz
Clock Speed	120 MHz, 120 MHz (max)
RAM Memory Size	256 KB
Number of Bits	12 Bit
Power Dissipation	452 mW
FLASH Memory Size	1048576 B
Number of UARTs	8 UART
Number of ADCs	1 ADC
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	452 mW
	expand all
Operating Temperature	-40℃ ~ 105℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

ARM® Cortex®-M4F Tiva™ C Microcontroller IC 32-Bit 120MHz 1MB (1M x 8) FLASH 128-TQFP (14x14)
