UC3845BD1R2G ,Voltage Regulator - ON Semiconductor

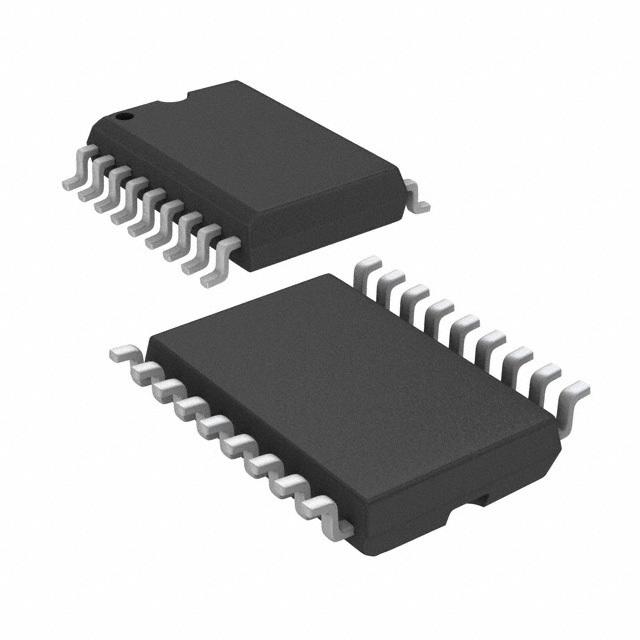

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

267 points

Part No

UC3845BD1R2G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW466862
Category

Voltage Regulator
Package

SOIC-8
Description

UC3845BD1R2G, PWM Current Mode Controller, 1A, 250kHz, 36V, 8Pin SOIC
Documentation

Datasheet
Ships from

Moscow
Наличие

4660 pcs In Stock
Estimated Price

$ 0.24

Buy UC3845BD1R2G

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

UC3845BD1R2G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

UC3845BD1R2G Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	UC3845BD1R2G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW466862
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	250 kHz
Supply Voltage (DC)	12.0V (min)
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	30.0 V
Output Voltage	13.4 V
Output Current	12 mA
Supply Current	12 mA
Number of Positions	8 Position
Power Dissipation	0.702 W
Rise Time	50 ns
Switching Frequency	500 kHz
Topology	Flyback, Forward, Step-Up, Step-Down
Duty Cycle	50 %
Maximum Duty Cycle	48 %
Fall Time	50 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	702 mW
Supply Voltage	7.6V ~ 30V
Supply Voltage (Max)	25 V
Supply Voltage (Min)	12 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The UC3845BD1R2G is a high-performance fixed frequency current-mode Pulse Width Modulation (PWM) Controller specifically designed for off-line and DC to DC converter applications offering the designer a cost-effective solution with minimal external components. It features an oscillator, a temperature compensated reference, high gain error amplifier, current sensing comparator and a high current totem pole output ideally suited for driving a power MOSFET. Also included are protective features consisting of input and reference undervoltage lockouts each with hysteresis, cycle-by-cycle current limiting, a latch for single pulse metering and a flip-flop which blanks the output off every other oscillator cycle, allowing output deadtimes to be programmed from 50 to 70%.
Trimmed oscillator for precise frequency control
Automatic feed forward compensation
Internally trimmed reference with undervoltage lockout
High current totem pole output
Undervoltage lockout with hysteresis
Low startup and operating current
