XRCGB30M000F3M00R0 - muRata

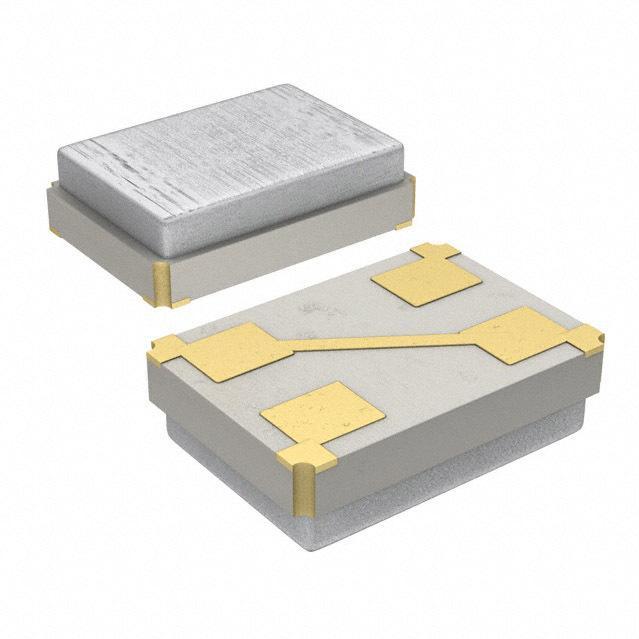

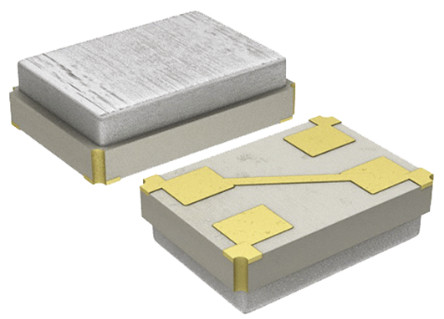

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

XRCGB30M000F3M00R0
Manufacturer

muRata
ChipWorker Part#

CW29078672
Category

Crystal
Package

SMD-4
Description

Crystal Resonator 30MHz 30ppm (Tol) 40ppm (Stability) 6pF 100Ω 4Pin SMD T/R
Documentation

Datasheet

XRCGB30M000F3M00R0 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

XRCGB30M000F3M00R0 Specifications

Attribute	Attribute Value

Part Number	XRCGB30M000F3M00R0
Manufacturer	muRata
ChipWorker Part#	CW29078672
Category	Crystal
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SMD-4
Frequency	30 MHz
Frequency Stability	±40 ppm
Frequency Tolerance	±30 ppm
Equivalent Series Resistance (ESR)	100 Ω
Load Capacitance	6 pF
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
	expand all
Size-Length	2 mm
Size-Width	1.6 mm
Size-Height	0.65 mm
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

* Small package (2.0x1.6mm) * Compatible with RoHS directive (phase 3)
