5KP28A - Littelfuse

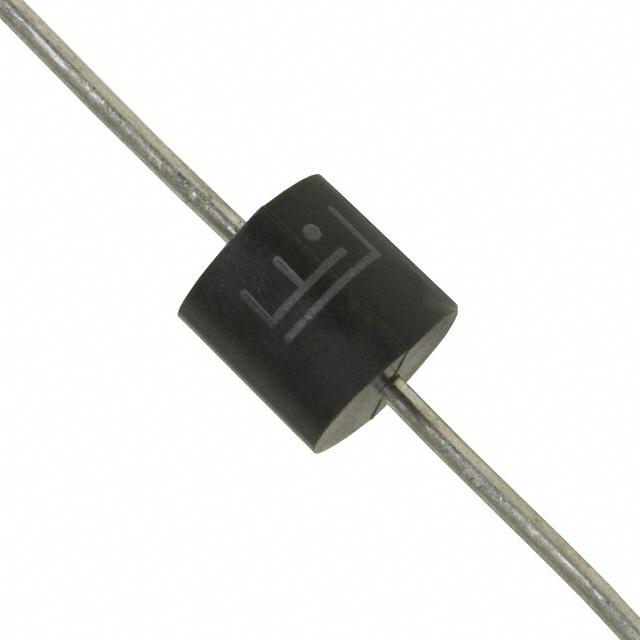

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

5KP28A
Manufacturer

Littelfuse
ChipWorker Part#

CW61127720
Category

TVS Diode
Package

P-600
Description

LITTELFUSE 5KP28A TVS Diode, 5KP Series, Unidirectional, 28V, 45.4V, P600, 2Pins
Documentation

Datasheet

5KP28A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

5KP28A Specifications

Attribute	Attribute Value

Part Number	5KP28A
Manufacturer	Littelfuse
ChipWorker Part#	CW61127720
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	P-600
Voltage Rating (DC)	28.0 V
Power Rating	5.00 kW
Clamping Voltage	45.4 V
Test Current	5 mA
Max Breakdown Voltage	34.4 V
Peak Pulse Power	5000 W
Min Breakdown Voltage	31.1 V
Reverse Breakdown Voltage	31.1 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 175℃
	expand all
Size-Length	9.1 mm
Size-Diameter	9.10 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Littelfuse"s 5KP28A TVS diode is designed to protect electronic components and circuits from electrical overstress from overvoltage and electrostatic discharge. Its maximum leakage current is 2 μA. Its peak pulse power dissipation is 5000 W. This device"s maximum clamping voltage is 45.4 V and minimum breakdown voltage is 31.1 V. Its test current is 5 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
