90HBW08PT - Grayhill

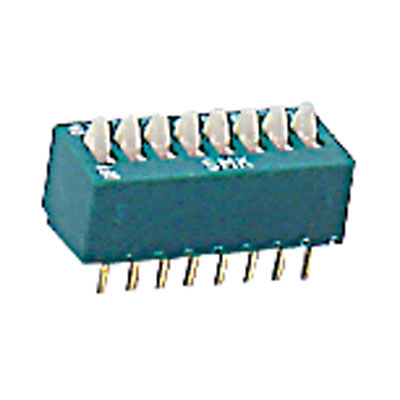

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part No90HBW08PT
-
ManufacturerGrayhill
-
ChipWorker Part#CW4834000
-
CategoryDIP Switch, SIP Switch
-
PackageDIP
-
DescriptionGRAYHILL 90HBW08PT DIP / SIP Switch, Flush Slide, 8Circuits, SPST, SMD, 90HB Series, DIP Sealed, 6VDC
-
