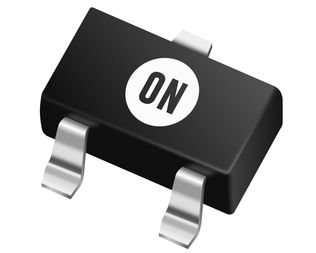

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoBAV70WT1G
-
ManufacturerON Semiconductor
-
ChipWorker Part#CW1121273
-
CategoryDiode Array, TVS Diode Array
-
PackageSC-70-3
-
DescriptionON SEMICONDUCTOR BAV70WT1G Small Signal Diode, Dual Common Cathode, 70V, 150mA, 1.25V, 6ns, 500mA
-
