X9511WS ,Digital Potentiometer IC - Intersil

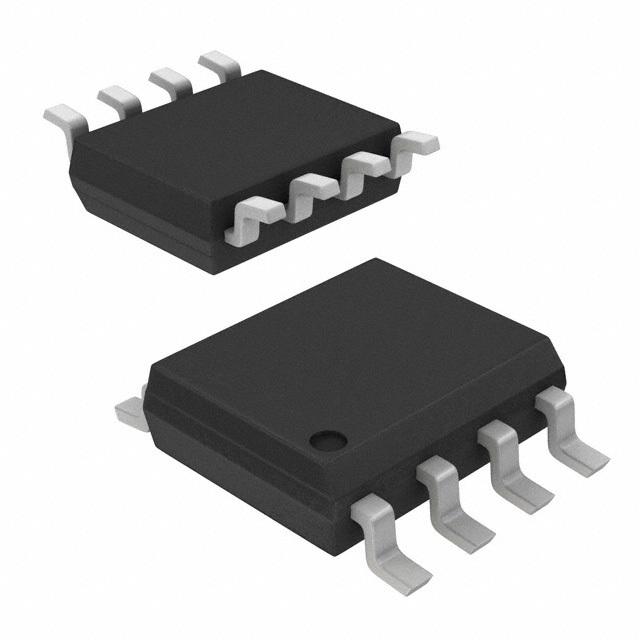

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
79 points
-
Part NoX9511WS
-
ManufacturerIntersil
-
ChipWorker Part#CW122257213
-
CategoryDigital Potentiometer IC
-
PackageSOIC-8
-
DescriptionDigital Potentiometer 32POS 10KΩ Single 8Pin SOIC
-
DocumentationDatasheet
-
Ships fromMoscow
-
НаличиеIn Stock
-
Estimated Price$ 3.15
