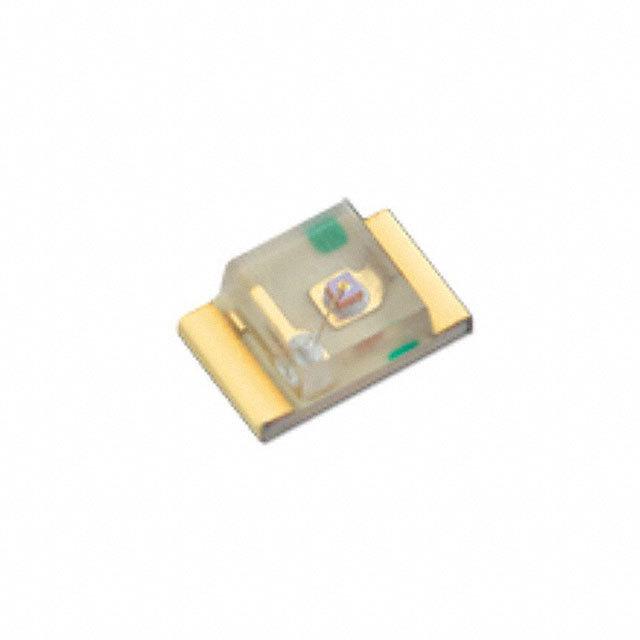

APT2012F3C - Kingbright

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

APT2012F3C
Manufacturer

Kingbright
ChipWorker Part#

CW35301014
Category

Light Source, Emitter
RoHS

Lead free / RoHS Compliant
Description

Infrared LED, 1.3mm, 1Element, 940nm, 2 X 1.25MM, 0.75MM HEIGHT, ROHS COMPLIANT, SMT, 2Pin
Documentation

Datasheet

APT2012F3C Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

APT2012F3C Specifications

Attribute	Attribute Value

Part Number	APT2012F3C
Manufacturer	Kingbright
ChipWorker Part#	CW35301014
Category	Light Source, Emitter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	0805
Power Rating	80 mW
Forward Voltage	1.2 V
Wavelength	940 nm
Viewing Angle	120°
Peak Wavelength	940 nm
Power Dissipation	80 mW
Test Current	20 mA
Forward Current	50 mA
Maximum Forward Voltage (Max)	1.6 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	80 mW
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Infrared (IR) Emitter 940nm 1.2V 50mA 1.2mW/sr @ 20mA 120° 0805 (2012 Metric)
