BSS138WH6433XTMA1 - Infineon

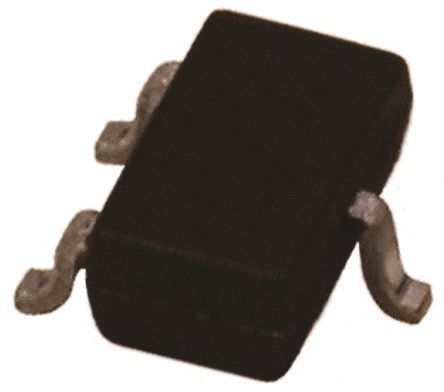

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSS138WH6433XTMA1
Manufacturer

Infineon
ChipWorker Part#

CW25304165
Category

MOSFET, MOSFET Transistor
Package

SOT-323-3
Description

SOT-323 N-CH 60V 0.28A
Documentation

Datasheet

BSS138WH6433XTMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSS138WH6433XTMA1 Specifications

Attribute	Attribute Value

Part Number	BSS138WH6433XTMA1
Manufacturer	Infineon
ChipWorker Part#	CW25304165
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-323-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	2.1 Ω
Polarity	N-CH
Power Dissipation	0.5 W
Threshold Voltage	1 V
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	0.28A
Rise Time	3 ns
Input Capacitance (Ciss)	32pF @25V(Vds)
Fall Time	8.2 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	expand all
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status

Product Description

BSS138W H6433, SP000917558
