PLH10AN7003R6P2B - muRata

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PLH10AN7003R6P2B
Manufacturer

muRata
ChipWorker Part#

CW86346017
Category

Inductor Choke
RoHS

Lead free / RoHS Compliant
Description

Common Mode Chokes Dual 70uH 3.6A 30mOhm DCR Thru-Hole Box
Documentation

Datasheet

PLH10AN7003R6P2B Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PLH10AN7003R6P2B Specifications

Attribute	Attribute Value

Part Number	PLH10AN7003R6P2B
Manufacturer	muRata
ChipWorker Part#	CW86346017
Category	Inductor Choke
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	1260
Voltage Rating (DC)	300 V
Inductance	70 µH
Shielding	No
Current Rating (Max)	3.6 A
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	300 VAC
Resistance (DC Max)	30 mΩ
	expand all

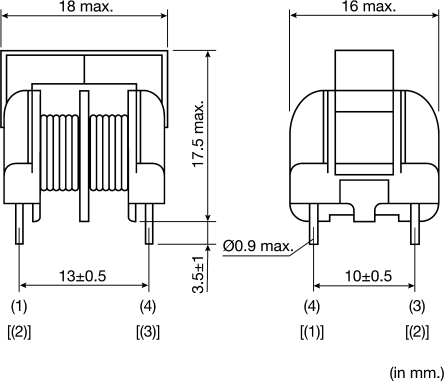

Size-Length	18 mm
Size-Width	16 mm
Size-Height	17.5 mm
Operating Temperature	-25℃ ~ 60℃
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

2 Line Common Mode Choke Through Hole 3.6A DCR 30mOhm
